Here's just a small sampling of the projects we've helped deliver over the years.

Fuel Gas Mixing Skid - ICC


This is a fuel gas mixing skid used in a Tulsa area R&D facility.  The unit measures and mixes several different fuel gases.  The unit was built to AWS D1.1 structural requirements, B31.3 piping codes, was heat traced and insulated by ICC, and has a NEMA 4 rated PLC panel.


CSA Fuel Skid - ICC


This is a CSA skid that controls seal gas flow to a large compressor.  The unit has cable and tray as well as tubing.


Australia Fuel Skid - ICC


A fuel control skid completed for the Wheatstone project in Australia. The unit is designed to meet all local Australian codes and specifications.

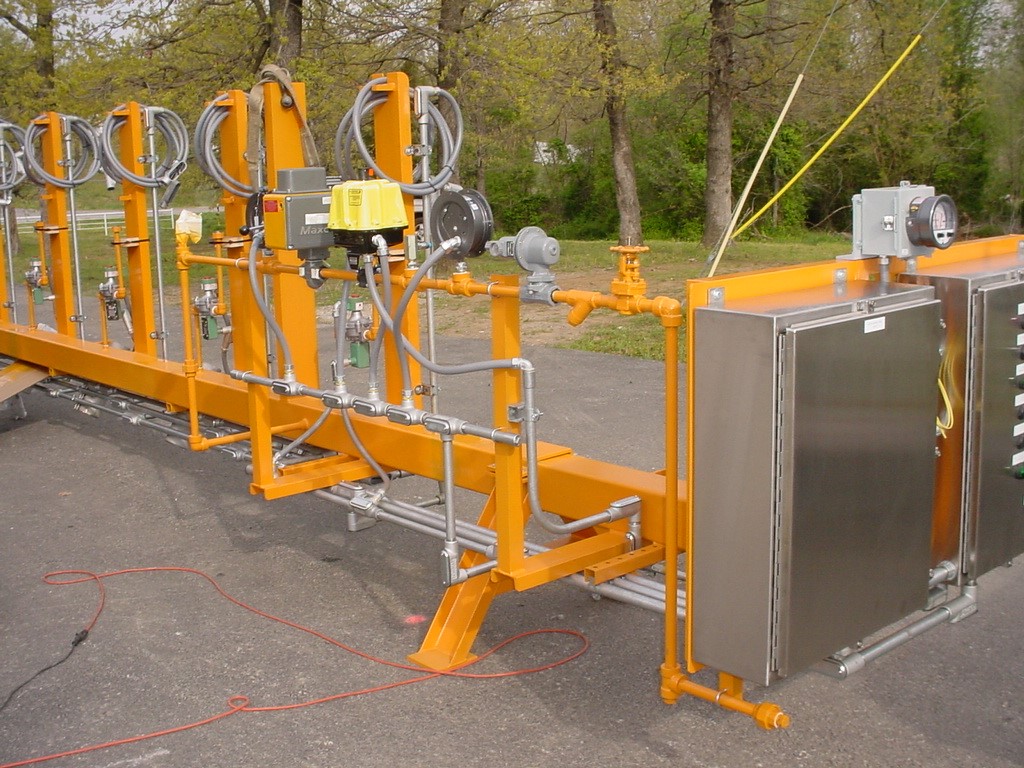

Fuel Control System - ICC

Central USA

This is a fuel control system for a retort in a carbon anode plant.  The unit was designed to be movable from retort to retort, and is controlled by a relay logic panel with a flame safe guard system interface.

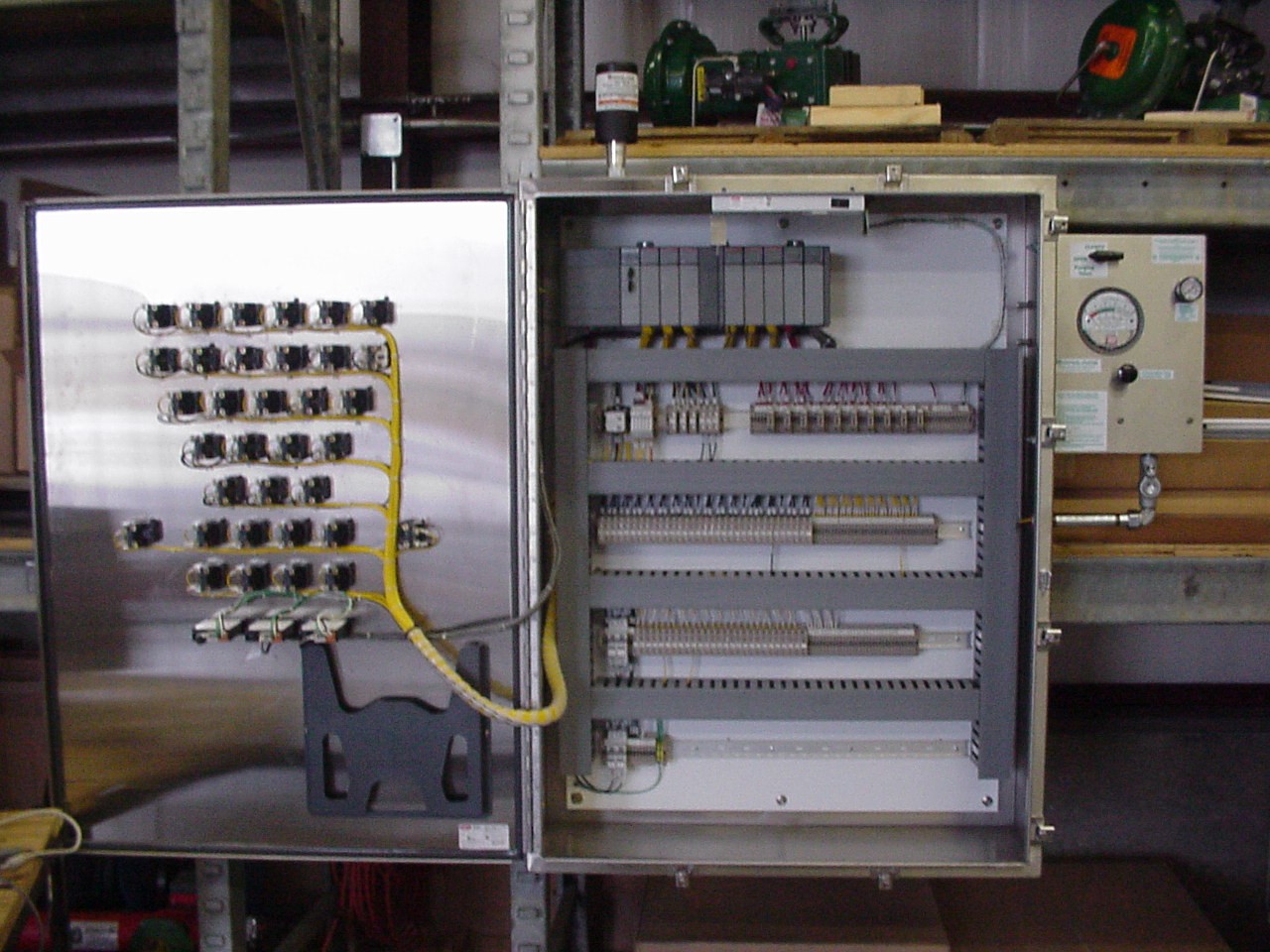

PLC Control Panel - ICC

Southern USa

This is a PLC panel for a fired heater in a pesticide plant.  The unit is a NEMA 4X panel with a purge kit designed to communicate with the plant DCS.  ICC provided the design, eqiupment, HAZOP assistance and start-up and installation.
